2-flute solid carbide end mill – medium series

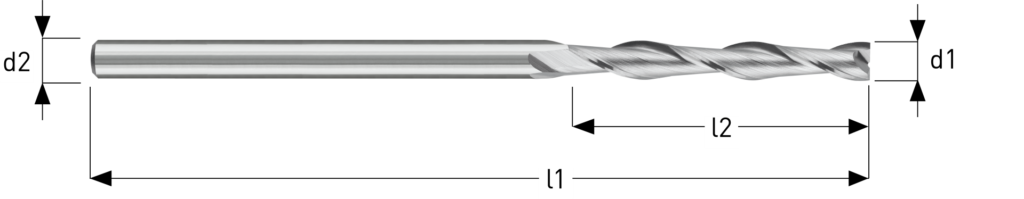

| d1h11 | d2h6 | l1+1/0 | l2+1/0 |
|---|---|---|---|
| 3.0 | 3.0 | 55.0 | 20.0 |
| Coating | No |
| Helix angle | 30° |
| Flutes | 2 |
| Standard | TUSA |
| Material | Description | Machinability | Vcm/min | fnmm/rev |
|---|---|---|---|---|
| P.0 | Long chipping Low Carbon Steels | Recommended | 160-200 | 0.0126 |
| P.1 | Short chipping Low Carbon Steels | Recommended | 160-200 | 0.0126 |
| P.2 | Medium and High Carbon Steels | Recommended | 140-180 | 0.0126 |
| P.3 | Alloy Steels, Tool Steels (N/mm² 600-850) | Recommended | 100-140 | 0.0126 |
| P.4 | Alloy Steels, Tool Steels (N/mm² 850-1400) | Recommended | 80-120 | 0.0126 |
| P.5 | Ferritic, Martensitic, PH SS | Partially recommended | 60-100 | 0.0126 |
| P.6 | High Strength Ferritic, Martensitic, PH SS | Partially recommended | 60-80 | 0.0126 |
| M.1 | Austenitic Stainless Steel | Partially recommended | 80-120 | 0.0126 |
| M.2 | High Strength Austenitic SS, Cast SS | Partially recommended | 60-100 | 0.0126 |
| M.3 | Duplex SS | Partially recommended | 40-80 | 0.0126 |
| K.1 | Grey Cast Iron | Partially recommended | 140-180 | 0.0126 |
| K.2 | Low and Medium Strength CGI, Ductile Irons | Partially recommended | 100-140 | 0.0126 |
| K.3 | High Strength Ductile and Austempered Ductile Iron | Partially recommended | 80-120 | 0.0126 |
